Product Description

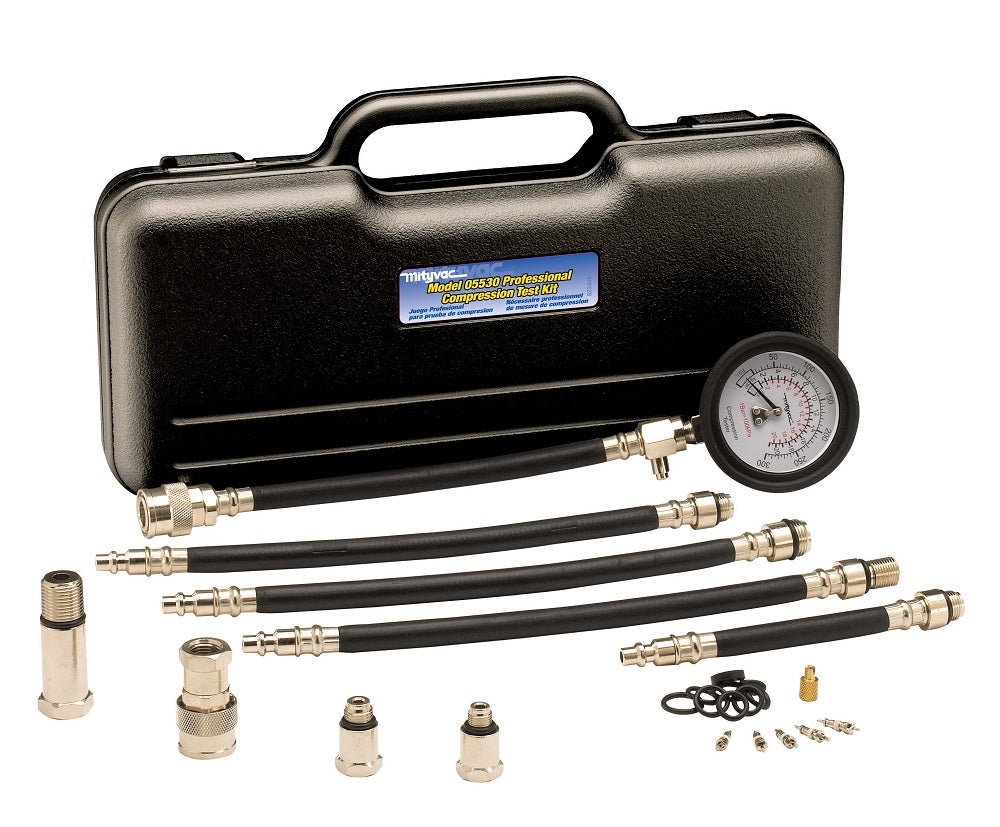

This comprehensive kit includes everything required to perform dry and wet engine cylinder compression tests commonly used to detect ring or cylinder head problems, sticking valves, blown head gasket(s) and more. Includes adapters for use on motorcycles, marine and small engines and an air-hold adapter for performing valve seal repairs without removing the cylinder head(s).Not for use on diesel engines.
Features:
Manual pressure release for maintaining peak readings
Professional-grade threaded adapters for leak-proof seals
Extended hoses for hard-to-reach applications
Large, easy-to-read in. (70 mm) diameter gauge
Adapters to fit engines as small as lawn mowers, chain saws and trimmers
Quick-disconnect coupler for easy accessory changes
Includes:
MV5530
in. (70 mm) gauge with high impact lens, rubber boot, and four (4) scales of measure (psi, kg/c, bar, kPa), attached to 10 in. (250 mm) hose and quick release coupler
14 mm short-thread adapter with in. (165 mm) and 12 in. (305 mm) hoses
14 mm long-thread adapter with 12 in. (305 mm) hose
18 mm short-thread adapter with 12 in. (305 mm) hose
14 mm short-thread x 18 mm long-thread adapter
10 mm thread small engine adapter
12 mm thread small engine adapter
Quick-release air hold adapter
Custom blow-molded case
Field service kit
