Product Description
A multitude of testers right at your fingertips.Diagnosing a hard to reach electrical problem can be a real headache. The right tool for the job can make all the difference!

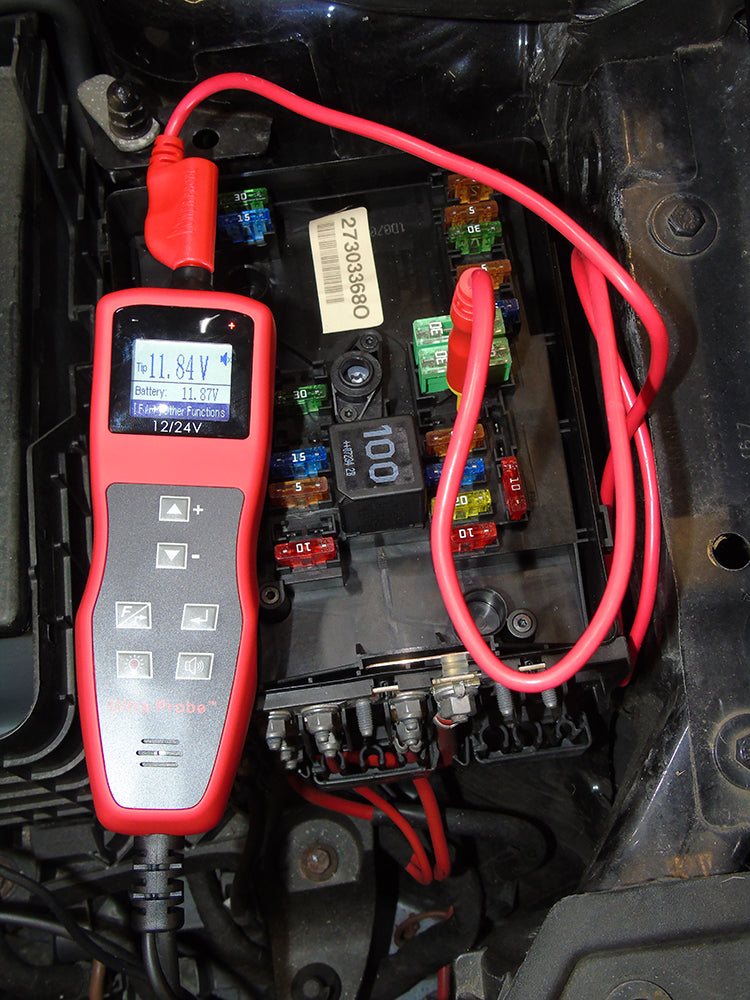

Once you connect the Ultra Power Probe to your car battery you will have access to an amazing variety of diagnostic functions.
Features:
Power Up Components,
Audio Tone,
Voltmeter,
12 - 24 Volt Range,
Ohm Meter
20ft. Jumper Lead Set,
Bad Ground Indicator,
Continuity Tester,
Short Circuit Indicator,
Relay and Component Tester,
Frequency (HZ)
Duty Cycle
Dual Meter Mode
Switch Mode
Technical Specifications:
Power Input DC 12V or 24V Battery
DCV Measurement Range 0.00V to 70.00V maximum
Resistance Measurement Range 1 to 2K ohms (2,000) maximum
Frequency (Hz) Measurement Range 0Hz to 99,999 Hz @ >2.0 V (max)
Peak to Peak Voltage Measurement High Peak Volts, Low Peak Volts & Average (AC Ripples)
Volts with HOLD (Freeze) display functions
Continuity to Ground
Polarity Detection (Tip Voltage) Within +/- 0.5V of input voltage supply
Indications RED or GREEN indicator LED and TONE will turn ON.
Power Feed Output Voltage Depends on input battery supply volts 12, 24Volts
Power Output Switching Modes: MOMENT, LATCH, PULSE
Over Load Protection 8.0 Amps [Manual RESET] Circuit Breaker
Reverse Polarity Protection Probe will not power ON when connected in reverse
